Quick start#
A short code example using several end-user functionalities of GeoUtils. For a more detailed example of all features, have a look at the Feature and scalability overview page! Or, to find an example about a specific functionality, jump to More examples right below.
Download data examples#
Example data from GeoUtils can be automatically downloaded with the function geoutils.examples.get_path() as used below.
See the Data examples page to learn more about all our example data and different download options.
Short example#
Note
Most functions shown here normally require many lines of code using several independent packages with inconsistent geospatial syntax and volatile passing of metadata that can lead to errors!
In GeoUtils, these higher-level operations are tested to ensure robustness and consistency. 🙂
The package functionalities can be called either from the rst,
vct, and pc accessors (Xarray or GeoPandas for points) or from the
Raster, Vector, and PointCloud classes.
Below, in just a few lines, we open raster, vector and point cloud files, crop the raster to the vector extent,
re-assign raster values around a buffer of the vector, sample values, calculate statistics, and finally plot and
save the raster result!
Install the optional dependencies with pip install "geoutils[opt]" to run both tabs, or use the corresponding
Conda packages listed in How to install.
Note
A UserWarning appears: No nodata value was defined in the GeoTIFF file, so GeoUtils automatically defined
one compatible with the data type derived during operations.
import geoutils as gu
import numpy as np
# Example files: paths to raster, vector, and point cloud files
filename_rast = gu.examples.get_path("everest_landsat_b4")
filename_vect = gu.examples.get_path("everest_rgi_outlines")
filename_pc = gu.examples.get_path("coromandel_lidar")
# Open native Xarray and GeoPandas objects; raster and point data stay lazy and chunked
ds = gu.open_raster(filename_rast, chunks={"x": 512, "y": 512})
gdf = gu.open_vector(filename_vect)
points = gu.open_pointcloud(filename_pc, data_name="Z", chunks=5_000)
# Crop raster to vector's extent by simply passing vector as "match-reference"
ds = ds.rst.crop(gdf)
# Buffer the vector by 500 meters no matter its current projection system
gdf_buff = gdf.vct.buffer_metric(500)
# Create mask of vector on the same grid/CRS as raster using it as "match-reference"
mask_buff = gdf_buff.vct.create_mask(ds)
# Re-assign values of pixels in the mask while performing a sum
calc_ds = ds.where(~mask_buff, ds + 50)
calc_ds = np.log(calc_ds / 2) + 3.5
# Sample the raster and calculate raster and point statistics with chunked execution
sample = calc_ds.rst.subsample(subsample=500)
raster_stats = calc_ds.rst.stats(["mean", "nmad"])
point_stats = points.pc.stats(["mean", "nmad"])
print(raster_stats, point_stats, sample.compute().head())

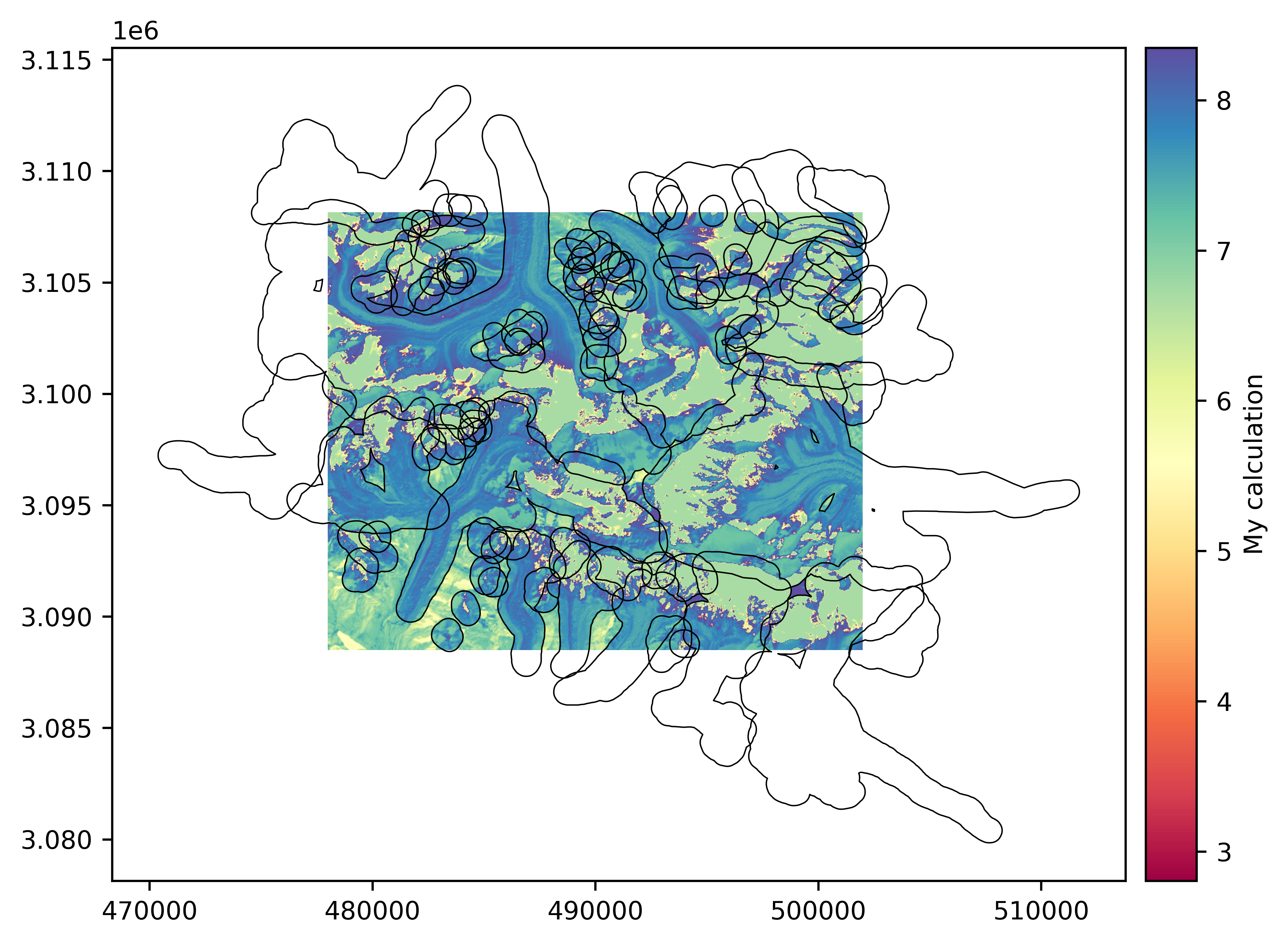

# Plot a bounded raster view without loading all pixels, using raster as projection-reference for vector
calc_ds.rst.plot(max_pixels=500_000, cmap="Spectral", cbar_title="My calculation")
gdf_buff.vct.plot(calc_ds, fc="none", ec="k", lw=0.5)
# Compute and save the lazy raster chunk-by-chunk
calc_ds.rst.to_file("mycalc_accessor.tif", compute=True)
from geoutils.multiproc import MultiprocConfig
# Open GeoUtils objects; raster and point data remain unloaded until required
rast = gu.Raster(filename_rast)
vect = gu.Vector(filename_vect)
point_cloud = gu.PointCloud(filename_pc, data_name="Z")
# Crop raster to vector's extent by simply passing vector as "match-reference"
rast = rast.crop(vect)
# Buffer the vector and create a mask on the raster grid
vect_buff = vect.buffer_metric(500)
mask_buff = vect_buff.create_mask(rast)
# Sample and calculate statistics in chunks with Multiprocessing
raster_config = MultiprocConfig(chunks=512, outfile="quick_sample.gpkg")
point_config = MultiprocConfig(chunks=5_000)
sample = rast.subsample(subsample=500, mp_config=raster_config)
raster_stats = rast.stats(["mean", "nmad"], mp_config=raster_config)
point_stats = point_cloud.stats(["mean", "nmad"], mp_config=point_config)
print(raster_stats, point_stats, sample)
# Re-assign values of pixels in the mask while performing a sum
rast[mask_buff] = rast[mask_buff] + 50
calc_rast = np.log(rast / 2) + 3.5
# Plot a bounded raster view without loading all pixels, using raster as projection-reference for vector
calc_rast.plot(max_pixels=500_000, cmap="Spectral", cbar_title="My calculation")
vect_buff.plot(calc_rast, fc="none", ec="k", lw=0.5)
# Save to file
calc_rast.to_file("mycalc_object.tif")
More examples#
To dive into more illustrated code, explore our gallery of examples that is composed of:
An Input/output section on opening, saving, loading, importing and exporting,
An Handling section on geotransformations (crop, reproject) and raster-vector interfacing,
An Analysis section on analysis tools and raster numerics.
See also the full concatenated list of examples below.
